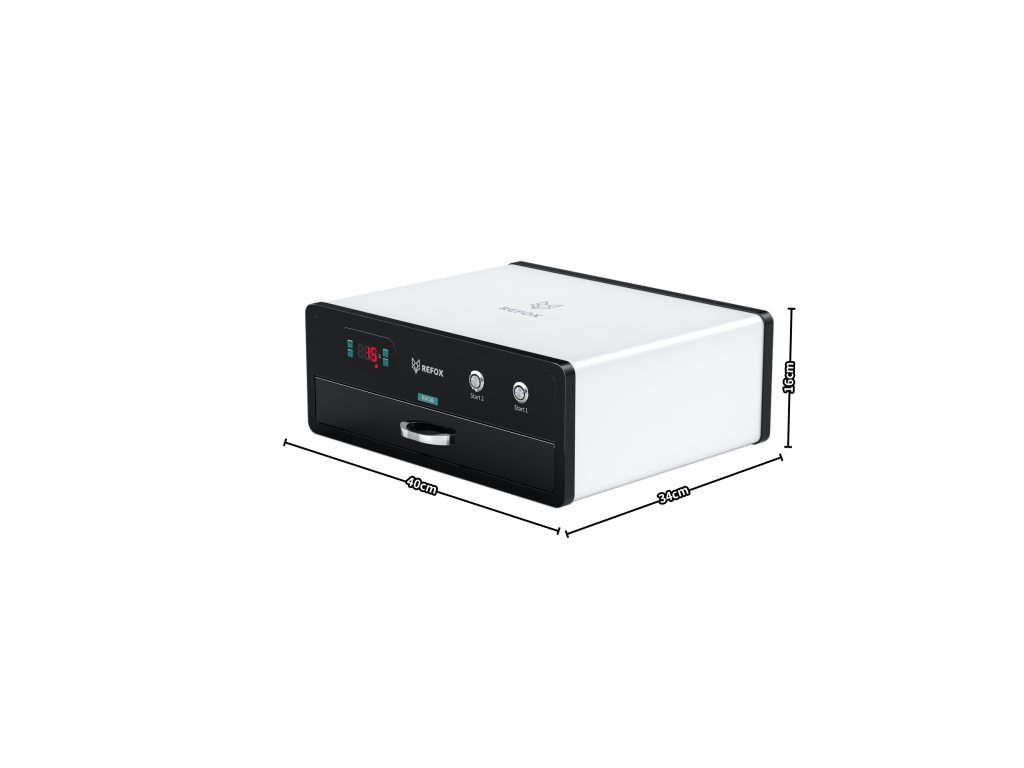

Refox UV Curing Box - RM26

REFOX RM26 UV Glue Curing Machine is a professional UV curing equipment composed of a light source system, control system, ventilation filter system, and cabinet. The built-in LED lamp emits ultraviolet rays to initiate a polymerization reaction in UV glue, achieving fast and reliable curing results. With high power, a wide irradiation area, and long service life, the RM26 can cure multiple mobile phone screens simultaneously — ideal for mobile phone LCD refurbishment, polishing, and waterproof glue curing.

Features | REFOX RM26 UV Glue Curing Machine

• Larger Lighting Area: The 330×280mm effective curing area allows simultaneous curing of 6 waterproof molds or bonding of 8 phone screens, suitable for tablets up to 12.9 inches.
• Fast Curing Efficiency: Equipped with 132 high-quality lamp beads, achieving a curing time as fast as 20 seconds for improved efficiency.
• Durable Performance: Features 3 cooling fans and a large aluminum heat dissipation plate for better cooling and longer service life.
• Eco-Friendly Deodorization: Built-in air filtration cartridge removes UV glue odors, providing a safer and more environmentally friendly working environment.
• Better Light Transmittance: Quartz lens and ceramic bracket ensure stable positioning of lamp beads with optimal light transmission.

Applications

• UV Glue (Waterproof Glue) Curing
• Phone Screen OCA Glue Curing
• Solder Mask Ink Curing
• Other UV curing applications

Package List

• UV Curing Box × 1
• Rubber Pad × 1
• Power Cord × 1
